Industrial Heavy-Duty Hydraulic Press with Precision Control System for Metal Forming, Stamping & Assembly Operations

1 세트
MOQ
negotiable
가격
Industrial Heavy-Duty Hydraulic Press with Precision Control System for Metal Forming, Stamping & Assembly Operations
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
체계: plc
오일펌프 타입: 멀티 펌프
메인 오일 실린더 정격 힘: 20000 쿠나
메인 오일 실린더의 최대 작동 압력: 80 MPa
활동 크로스빔의 최대 이동 거리: 250 mm
기본 정보
원래 장소: 광동, 중국
브랜드 이름: Star Power
인증: CU,ISO
모델 번호: TM -3000IPR
결제 및 배송 조건
포장 세부 사항: 필름이있는 금속 프레임
배달 시간: 1 개월
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 한 달에 100 세트/세트
제품 설명
Industrial Heavy-Duty Hydraulic Press with Precision Control System for Metal Forming, Stamping & Assembly Operations
Product Description
The PowerForge PF - 2500PC is a heavy-duty hydraulic press designed for metal processing, integrating a high-precision control system. It excels in metal forming (deep drawing, bending), stamping (blanking, coining), and assembly (bearing installation, shaft fitting), ensuring consistent dimensional accuracy (±0.02 mm).
With a robust alloy steel frame for stability, it offers adjustable pressing force (150 - 2500 kN) and stroke speed (8 - 45 mm/s). The user-friendly HMI allows easy program setting, while safety features (emergency stop, light curtains, overload protection) operator safety. It also has energy-saving design, cutting consumption by 25% vs traditional models, suitable for medium to large-scale manufacturing.

Max StrokeProduct Description

The HP-3150 Industrial Heavy-Duty Hydraulic Press is a high-performance equipment engineered for precision metal forming, stamping, assembly, and molding tasks across industries including automotive, aerospace, machinery manufacturing, and hardware production.

  • Advanced precision control system ensures stable pressure output and accurate position control
  • Robust steel frame provides exceptional load-bearing capacity and durability
  • User-friendly touchscreen interface for easy parameter setting
  • Comprehensive safety features including emergency stop buttons and safety light curtains
  • Customizable tooling installation for diverse production needs
  • Energy-efficient design with low noise operation
Hydraulic Power Machine Configuration
Project YRK-2000S-8X YRK-2500S-8X YRK-3000S-8X YRK-3500S-8X YRK-4000S-8X YRK-5000S-8X
Main oil cylinder nominal force 20000 KN 25000 KN 30000 KN 35000 KN 40000 KN 50000 KN
Maximum working pressure 80 Mpa 80 Mpa 80 Mpa 80 Mpa 80 Mpa 80 Mpa
Maximum travel of crossbeam 250 MM 300 MM 300 MM 300 MM 350 MM 350 MM
Nominal strength of returned steel (KN) 120 120 120 120 120 150
Technical Specifications
Type: Precision embossing steel wire winding hydraulic press
Purpose: Surface embossing and stamping of metals and precious metals
Common Materials: Gold, silver, nickel, copper, stainless steel
Servo motor power: 50 KW
Rated Voltage: 380 V
Workbench area: 750*550 mm
Return cylinder stroke: 50 mm
Beam lifting speed (work): 12 mm/s
Beam lifting speed (fast down/return): 260 mm/s
Closed height: Max: 750 mm, Min: 500 mm
Cooling motor: 4 KN
Main Accessories (Wearing Parts)
Order No. TS Name Quantity Production Location
1 SCR-160 Tuning module 4 block
2 WRNK-130 Φ5mm Thermocouple Four Zhaoqing, Guangdong
3 AI518E3JO Intelligent digital display power control temperature control table One Xiamen udian

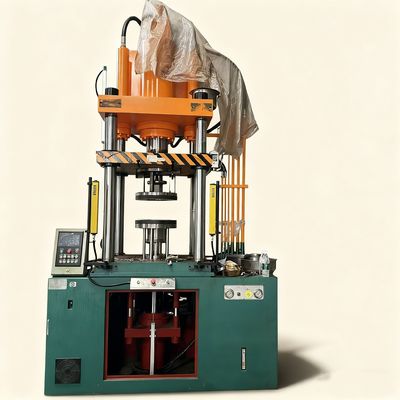

Industrial Heavy-Duty Hydraulic Press with Precision Control System for Metal Forming, Stamping & Assembly Operations 0

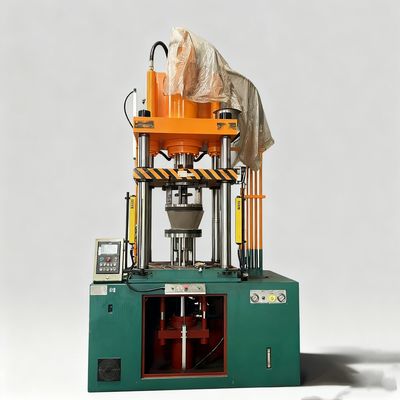

Industrial Heavy-Duty Hydraulic Press with Precision Control System for Metal Forming, Stamping & Assembly Operations 1
