380V Hydraulic Corner Forming Machine 1800x900x2000mm

1 세트
MOQ
negotiable
가격
380V Hydraulic Corner Forming Machine 1800x900x2000mm
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
AC: 380V
크기: 1800x900x2000mm
전기: 50/60Hz
작업 효율: 1배당 약 30센트
강조하다:

380V hydraulic corner forming machine

,

1800x900x2000mm hydraulic forming machine

,

hydraulic kitchen sink forming machine

기본 정보
원래 장소: 광동, 중국
브랜드 이름: Star Power
인증: CU, ISO
모델 번호: MP-HCF-1800
결제 및 배송 조건
포장 세부 사항: 항해 포장
배달 시간: 영업일 30-50 일
지불 조건: l/c, t/t
공급 능력: 연간 30 세트/세트
제품 설명
MaxPress 380V Industrial Hydraulic Corner Forming Machine
Product Overview
The MaxPress 380V Industrial Hydraulic Corner Forming Machine is a heavy-duty metalworking solution designed for precision corner pressing and shaping of large-format stainless steel sheets (up to 1800*600*2000mm). Powered by a 380V three-phase motor, it delivers consistent corner radius formation (R3-R30mm) with minimal material springback.
Key Features
  • High-pressure hydraulic system with adjustable force (0-15MPa)
  • Reinforced cast-iron frame with precision linear guides
  • Dual-cylinder synchronous pressing mechanism for uniform pressure
  • Digital control panel with parameter adjustment and program storage
  • Safety features including emergency stop and overload protection
  • Quick-change die sets compatible with standard sink corner profiles
  • ±0.1mm positioning accuracy with 5-15 seconds cycle time per corner
Technical Specifications
Parameter Specification
Voltage 380V 50Hz
Rated Power 4.5KW
Max Press Force 150KN
Working Area 1800*600mm
Corner Radius Range R3-R30mm
Machine Dimensions 2200*1200*2000mm

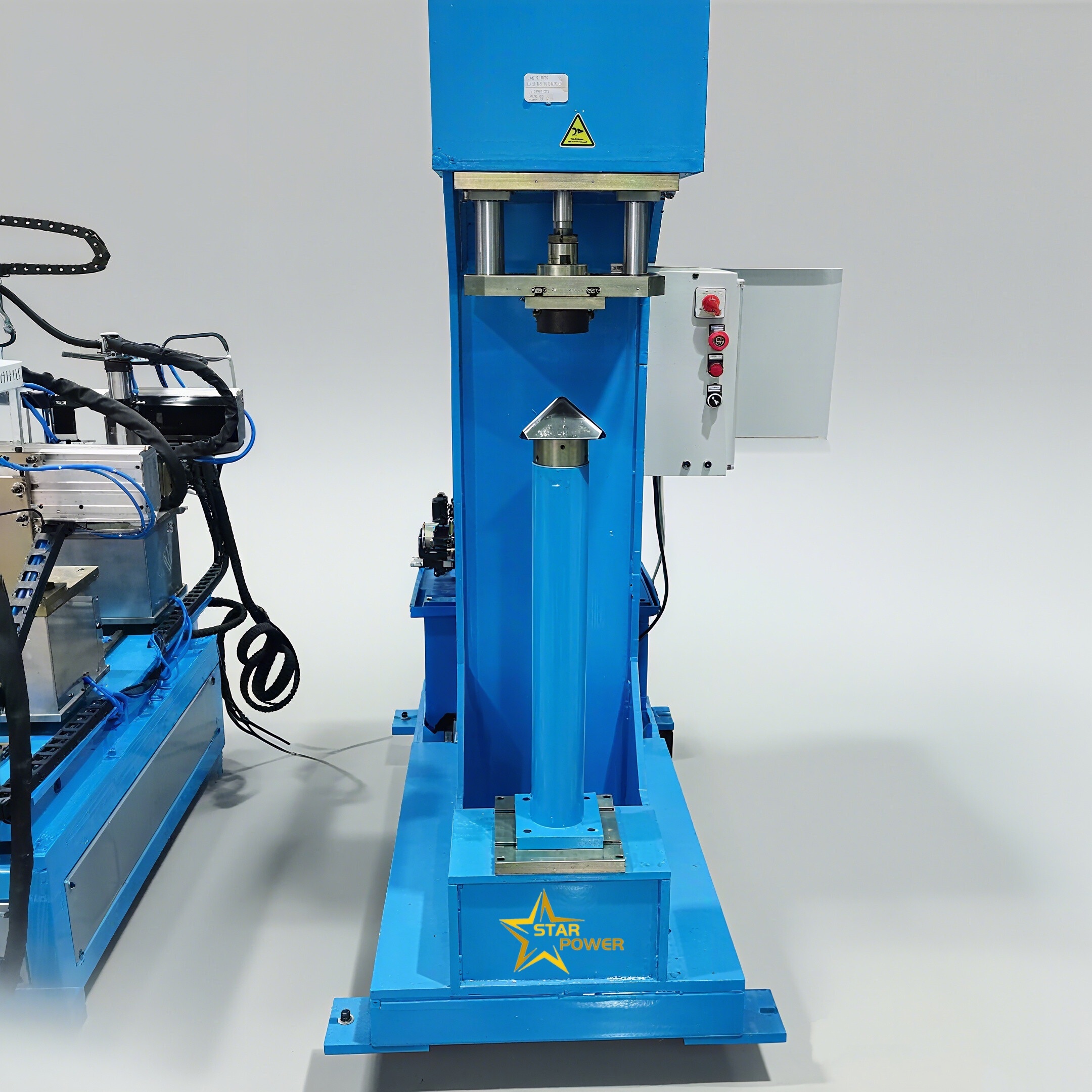

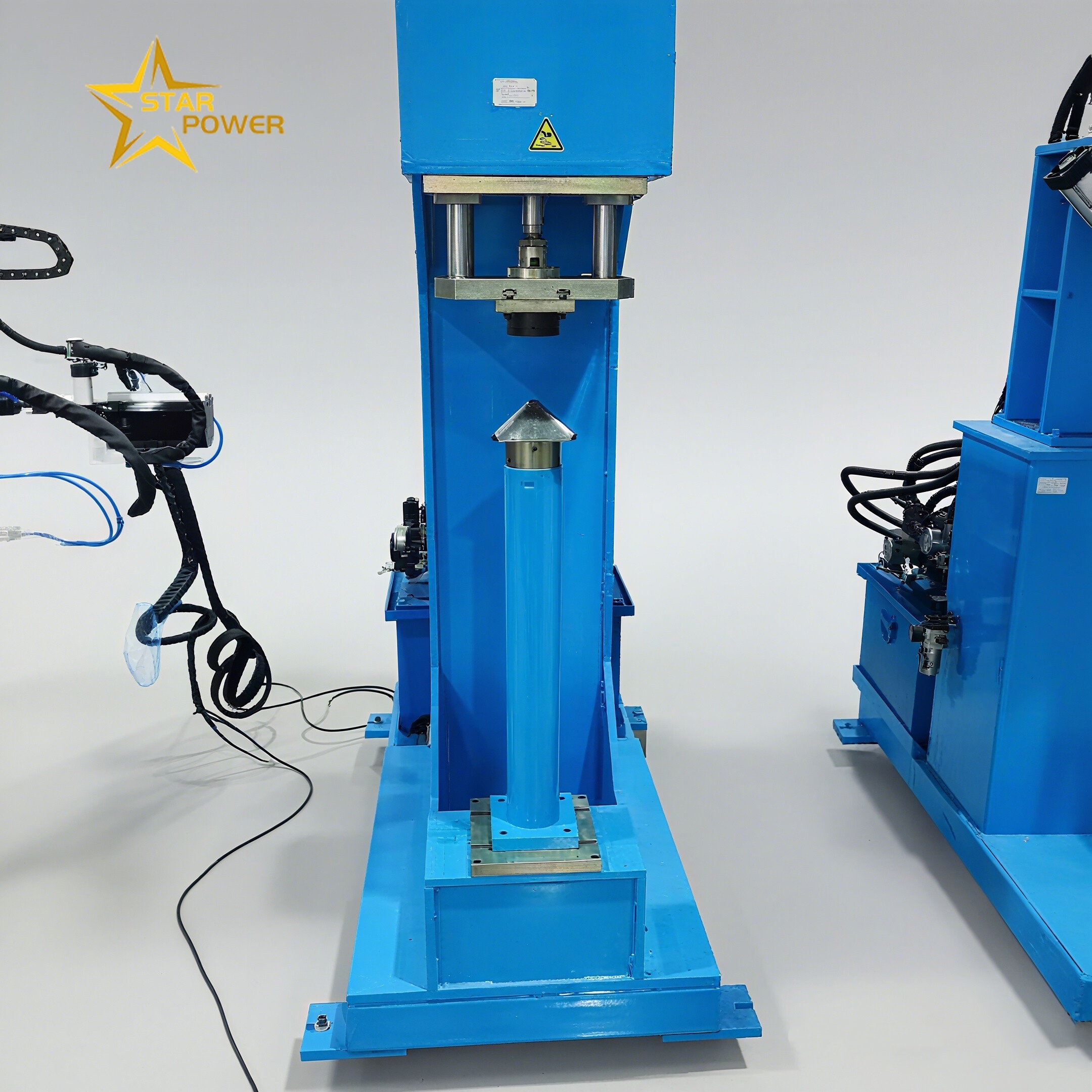

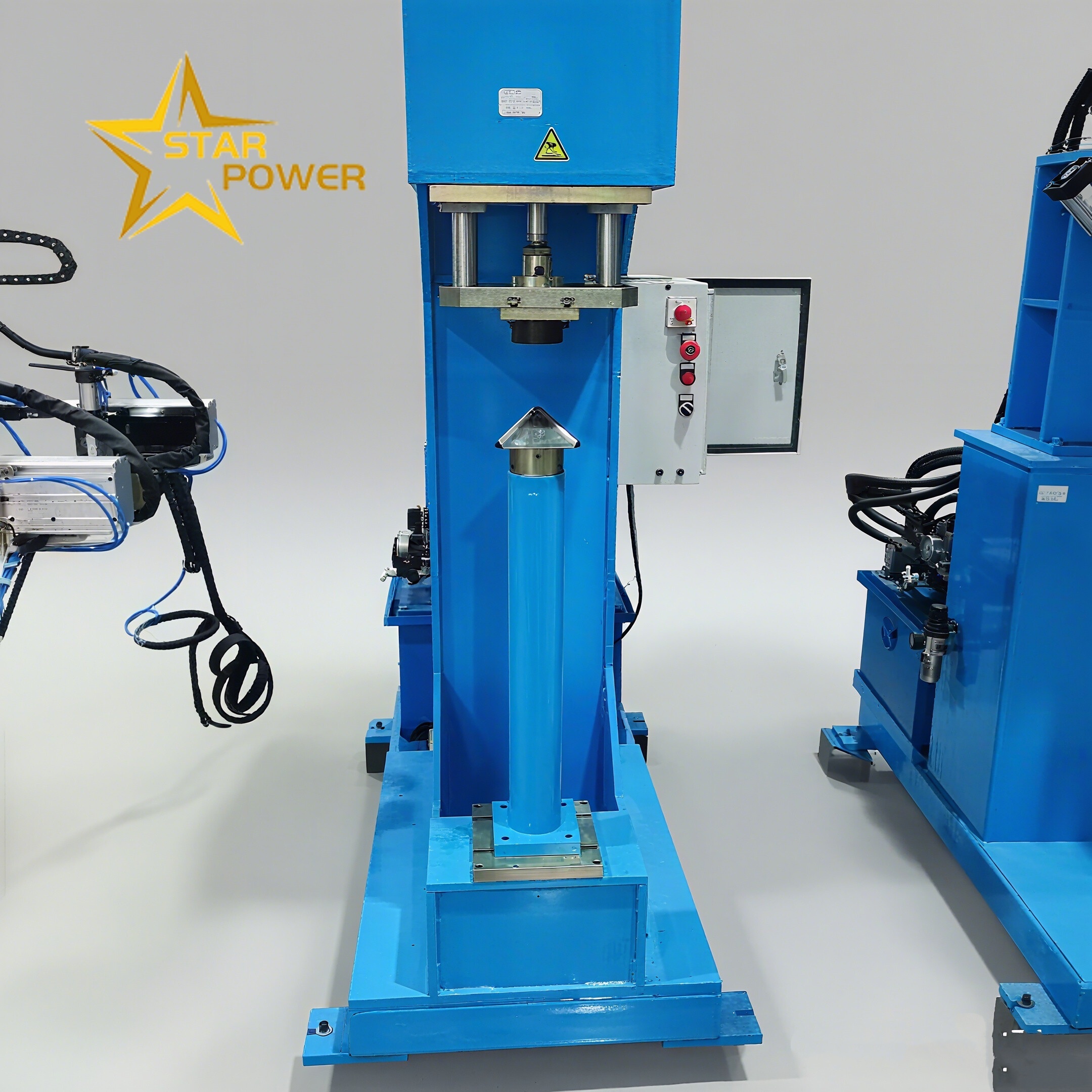

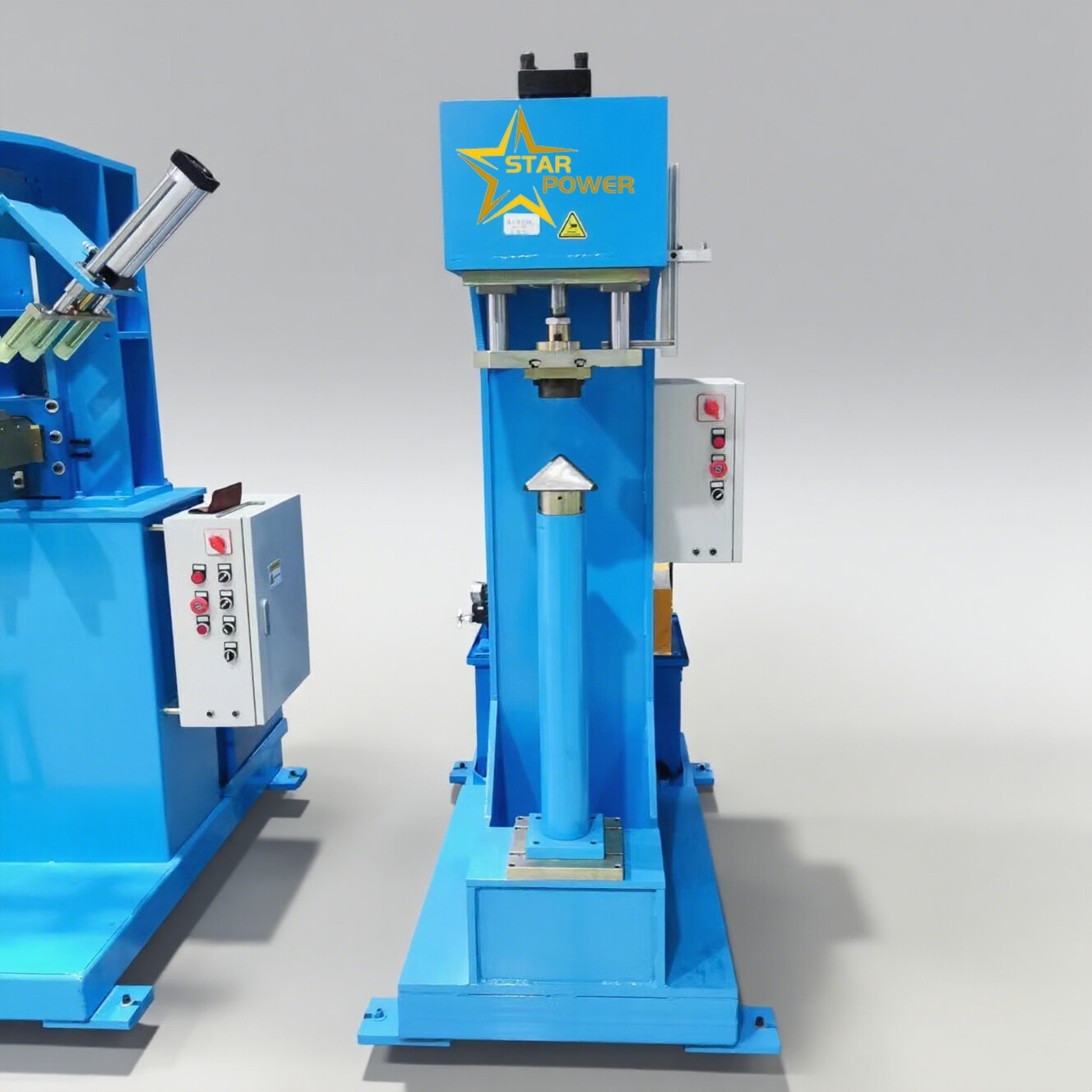

Product Images
380V Hydraulic Corner Forming Machine 1800x900x2000mm 0
380V Hydraulic Corner Forming Machine 1800x900x2000mm 1
380V Hydraulic Corner Forming Machine 1800x900x2000mm 2
Production Line
380V Hydraulic Corner Forming Machine 1800x900x2000mm 3
Certifications
380V Hydraulic Corner Forming Machine 1800x900x2000mm 4
Delivery
380V Hydraulic Corner Forming Machine 1800x900x2000mm 5
Manufacturer Information

Founded in 2022, Foshan Star Power Technology Co., Ltd. is located in Foshan, a city renowned for its pottery and martial arts. With a registered capital of 5 million yuan, our company specializes in:

  • Information system integration
  • Machinery and metal product sales
  • Import-export services

In the field of sink production lines, we offer advanced solutions combining high-precision CNC technology with efficient production processes. Our complete sets of equipment can perform operations such as laser cutting, bending, and welding, ensuring high-quality manufacturing while meeting various production needs.

WELCOME TO CONTACT US!
