Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness

1 세트
MOQ
negotiable
가격
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
사양: 싱크에 따르면
강조하다:

Industrial oil coating machine 950mm width

,

Oil coating machine 0.01-0.5mm thickness

,

Kitchen sink oil coating machine

기본 정보
원래 장소: 광동, 중국
브랜드 이름: Star Power
인증: CU, ISO
모델 번호: PAP -ASM500
결제 및 배송 조건
포장 세부 사항: 항해 포장
배달 시간: 영업일 30-50 일
지불 조건: l/c, t/t
공급 능력: 연간 30 세트/세트
제품 설명

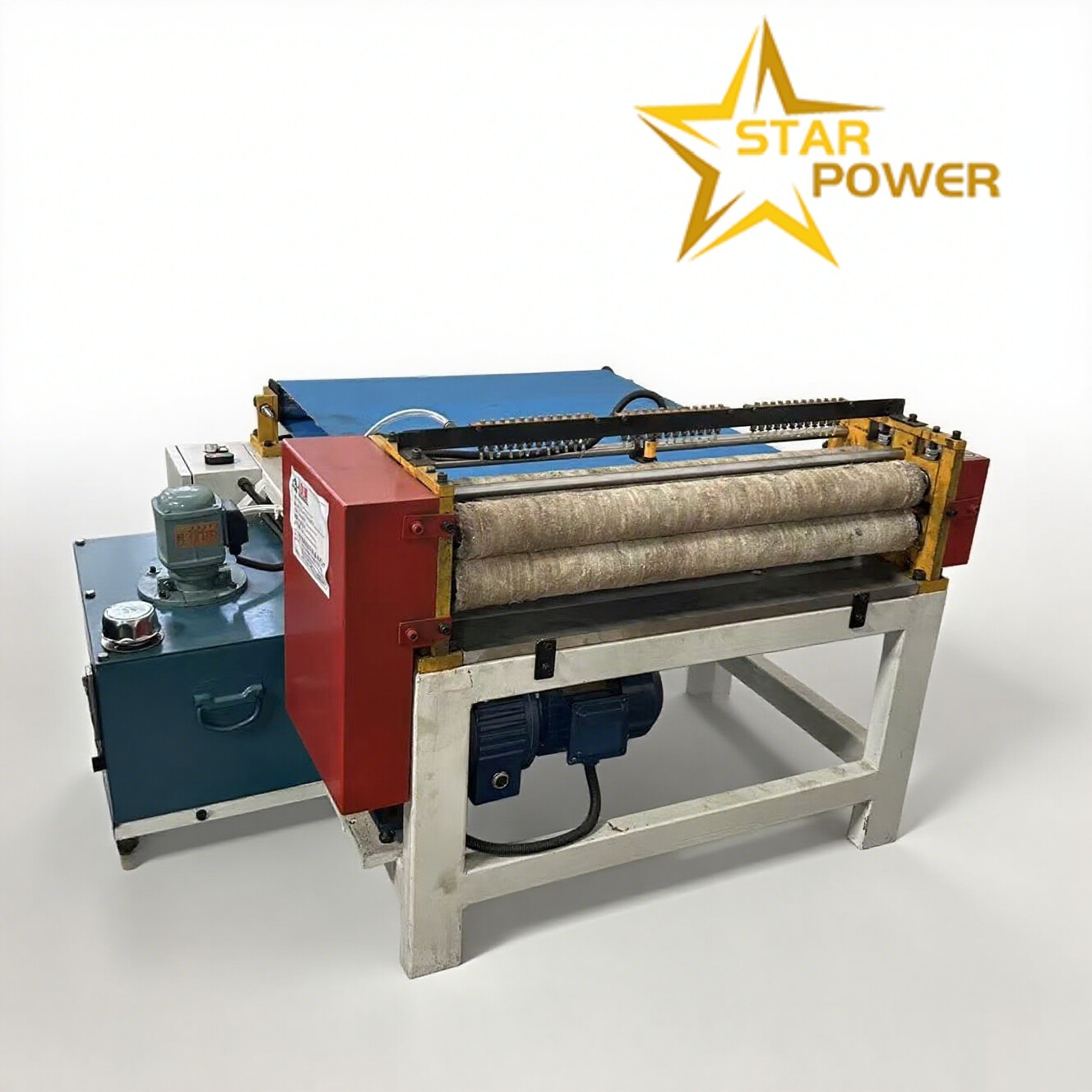

Industrial Precision Oil Spreading & Coating Machine
The Industrial Precision Oil Spreading & Coating Machine represents a cutting-edge solution for automated, uniform oil application across diverse industrial substrates. Engineered with advanced micro-adjustment technology, this equipment delivers consistent oil spreading and thin-film coating on materials including metal alloys, composite sheets, non-woven fabrics, and plastic membranes.
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness 0
Key Features
  • Dual-roller application system with variable pressure control
  • Precise oil distribution from 0.01mm ultra-thin coatings to medium-viscosity spreads
  • Integrated recirculation system minimizes oil waste
  • Intuitive touchscreen interface for custom parameter programming
  • Corrosion-resistant stainless steel frame construction
  • High-torque servo motors for reliable operation
  • Operates in high-temperature (up to 60°C) and humid environments
  • Safety features including emergency stop buttons and overload protection
  • Compatible with mineral oils, synthetic lubricants, and food-grade oils
Technical Specifications
Parameter Specification
Maximum Spreading Width 950 mm
Oil Viscosity Compatibility 5 - 500 cSt
Adjustable Coating Thickness 0.01 - 0.5 mm
Operating Speed 5 - 30 m/min
Power Supply 380V, 3-phase, 50/60Hz
Total Power Consumption 3.2 kW
Machine Dimensions (L*W*H) 1500*1000*1200 mm
Net Weight 350 kg
Production Line

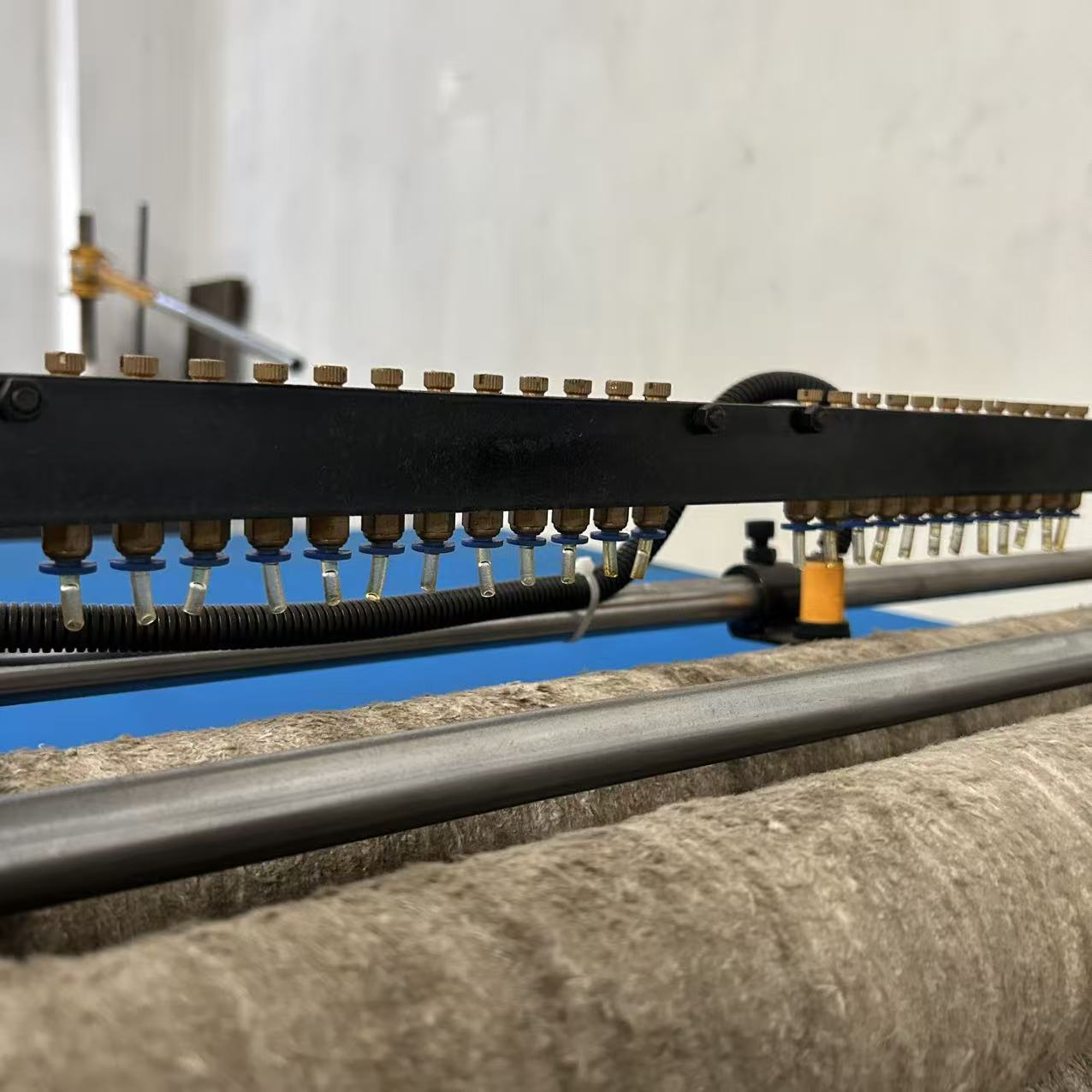

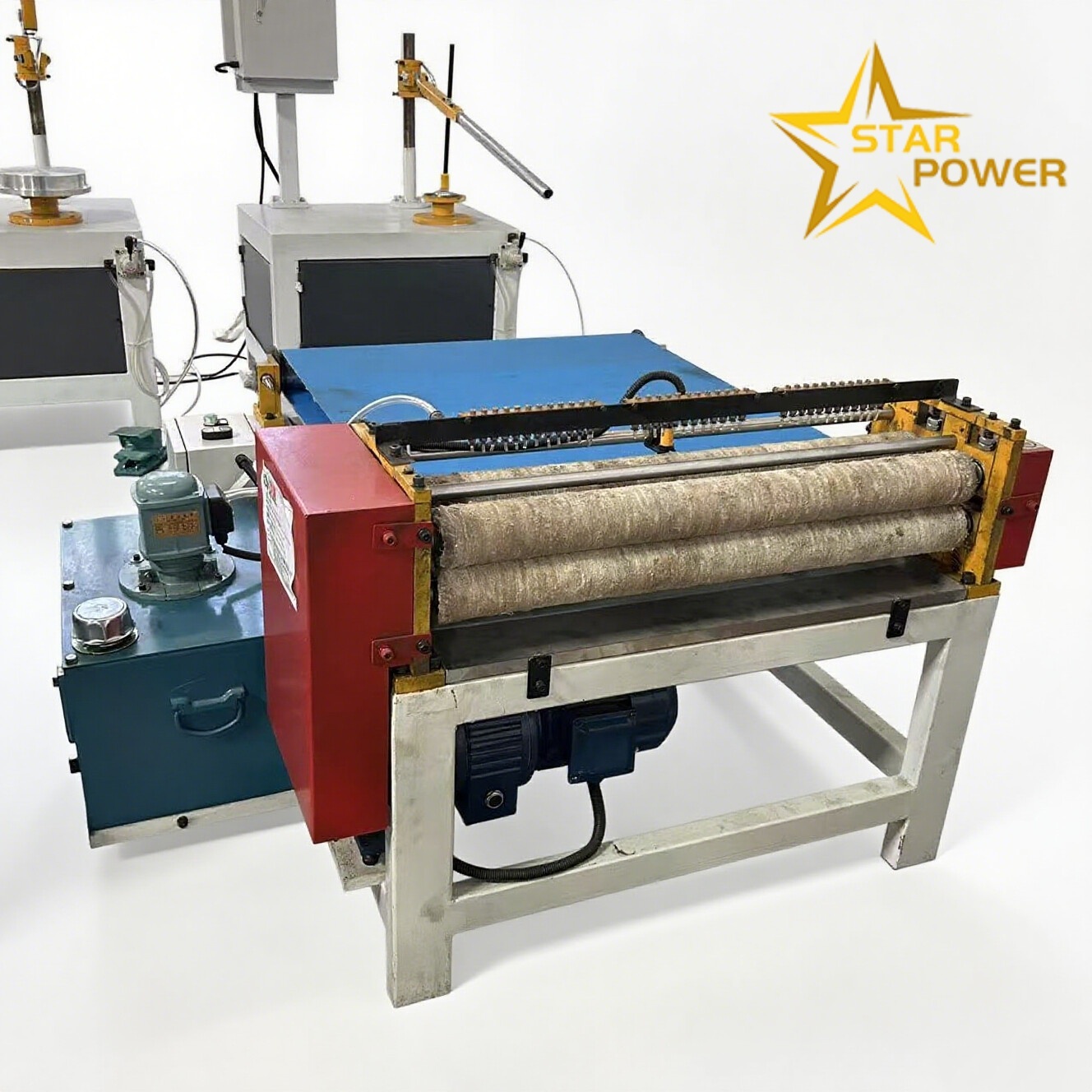

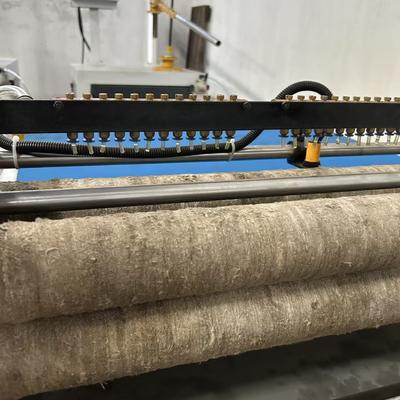

Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness 1
Packing
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness 2
Certifications
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness 3
Delivery
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness 4
Industrial Applications
Ideal for automotive part manufacturing, packaging production, textile finishing, and metal processing lines. Enhances product longevity and surface quality through controlled oil application.
